Assembly of Throttle Body,
Valve & Muffler:
Step 1
To assemble the muffler and valve components, Click Here and enter your Dynabrade Model Number to view the exploded view instructions found in the parts page or tool manual.
Step 2
Install the 01564 Air Control Ring onto the 01494 Inlet Adapter. Apply a small amount of Loctite #567 to the male thread of the inlet adapter. By hand, install the the 01494 Inlet Adapter onto the throttle body.
Step 3

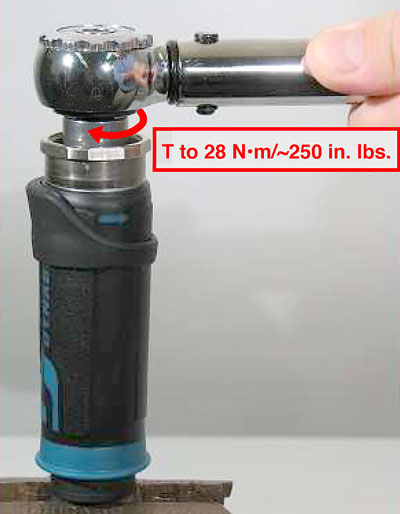

Fasten the 01494 Inlet Adapter in the vise with aluminum or bronze jaws so that the throttle body is pointing up. Use the
96393 Throttle Body Socket and torque wrench to tighten the inlet adapter onto the throttle body.
Turn clockwise. (T to 28 N•m/~250 in. lbs.)
Step 4

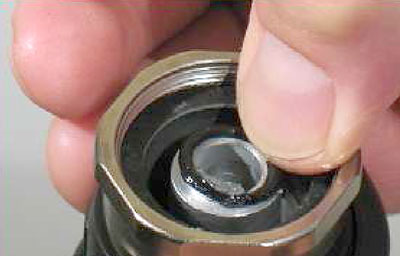

Apply a small amount of clean grease to the 95523 O-Ring and install it onto the throttle body.
Step 5

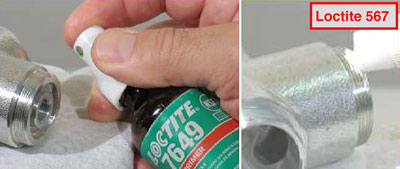

Apply a small amount of Loctite Primer #7649 to the threads of the 01739 Housing. Apply a small amount of Loctite #567 to
the housing.
Step 6

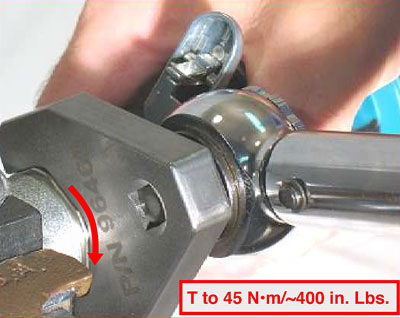

Install the throttle body onto the 7° housing.
Notice: Hold the throttle lever in the desired position. Use the 96460 and a torque wrench to fasten the throttle body onto the 7° housing.
Left Hand Thread - Turn counterclockwise.
(T to 45 N•m/~400 in. Lbs.)
