Dynabrade

Assembly of Throttle Body,
Valve & Muffler:

Step 1

To assemble the muffler and valve components, Click Here and enter your Dynabrade Model Number to view the exploded view instructions found in the parts page or tool manual.

Step 2

Install the 01564 Air Control Ring onto the 01578 Inlet Adapter.
Apply a small amount of Loctite #567 to the male thread of the inlet adapter. By hand, install the the 01578 Inlet Adapter onto the throttle body.

▲ Top of Page

Step 3

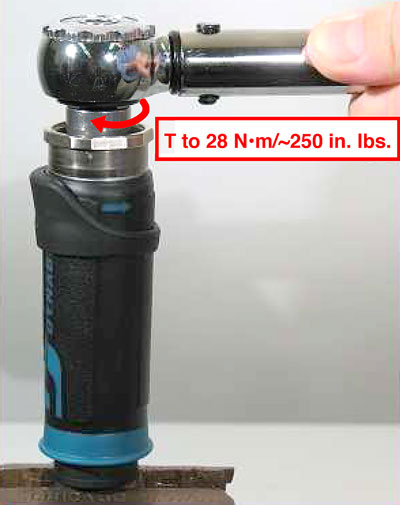

Fasten the 01578 Inlet Adapter in the vise with aluminum or bronze jaws so that the throttle body is pointing up.
Use the 96393 Throttle Body Socket and torque wrench to
tighten the inlet adapter onto the throttle body.
Turn clockwise. (T to 28 N•m/~250 in. lbs.)

▲ Top of Page

Step 4

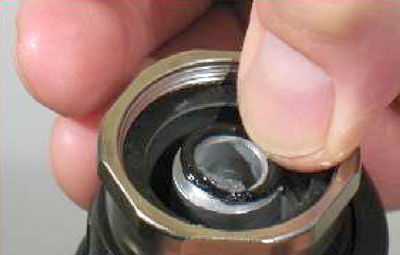

Apply a small amount of clean grease to the 95523 O-Ring
and install it onto the throttle body.

▲ Top of Page

Step 5

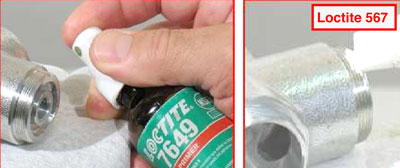

Apply Loctite Primer #7649 to the threads of the 01546 Housing. Apply a small amount of Loctite #567 to the housing.

▲ Top of Page

Step 6

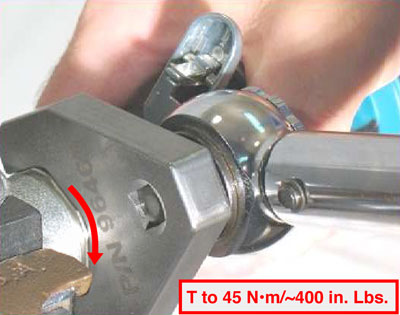

Install the throttle body onto the 7 Degree Offset housing.

Notice: Hold the throttle lever in the desired position.
Use the 96460 and a torque wrench to fasten the
throttle body onto the 7 Degree Offset housing.
Left Hand Threads. Turn counterclockwise.
(T to 45 N•m/~400 in. Lbs.)

Pull the 01558 Collar back over the throttle body lock nut.

▲ Top of Page

Throttle Body, Valve and
Muffler Assembly Complete.
