Motor Disassembly:
Step 1

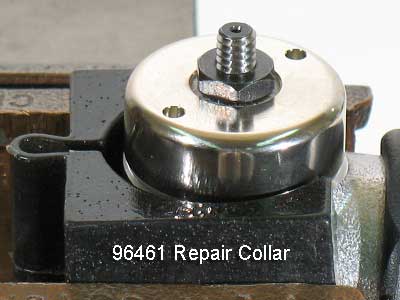

Use the 96461 Repair Collar to hold the 01546 or 50776 Housing in a vise, with the tool spindle pointing up.
Step 2

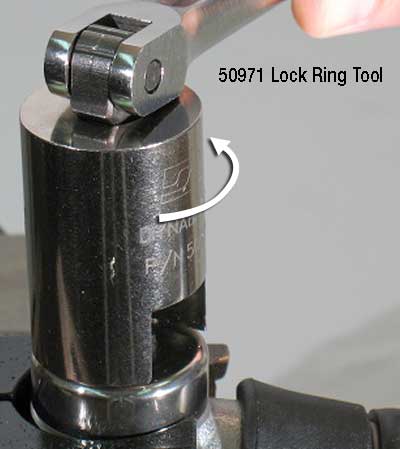

Use the 50971 Lock Ring Tool to remove the cover/lock nut.
Turn counterclockwise.
Step 3
Planetary-Gear Models: See Disassembly Instructions for 0.4 hp. Planetary Reduction Gears.
Step 4

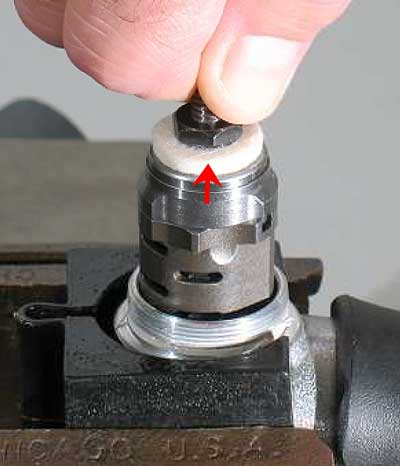

Remove the motor from the housing.
Some models may contain a 02679 Shield.
(Remove from housing.)
Step 5
Fasten the 96346 Bearing Separator (2") around the
01476 Cylinder. Place the bearing separator and the motor in the
96232 Arbor Press (#2) with the tool spindle pointing down.
Step 6
Use a 3/16" (4.76 mm) diameter flat-end drive punch as a press tool to push the rotor out of the 02696 Bearing.
Step 7
Remove the cylinder and vanes.
Step 8

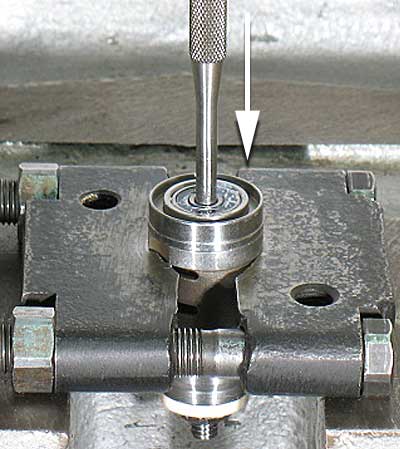

By hand, use the 3/16" (4.76 mm) diameter flat-end drive
punch to push the 02696 Bearing (slip-fit) out of the
02673 Rear Bearing Plate.
Step 9

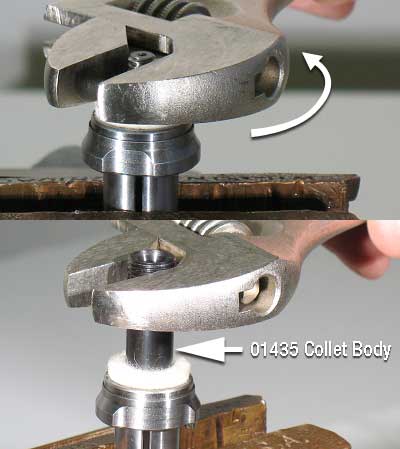

Use wrench to remove the 50133 Adapter or 01435 Collet Body.
Turn counterclockwise.
Step 10

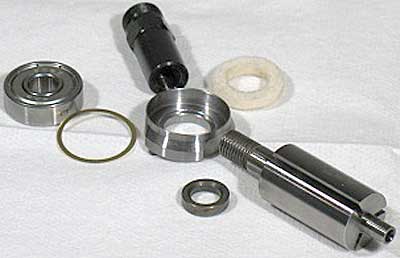

Remove the 01478 Front Bearing Plate, 02649 Bearing, shims, and 01479 Spacer.
Important:
Clean and inspect parts before assembling.
Motor Disassembly Complete.
